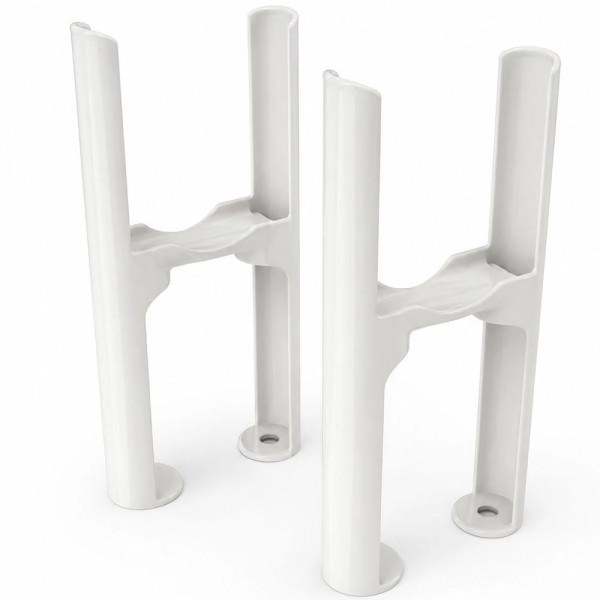

Set of floor brackets for NAVIN Calidum 3 tubular radiators, 2 pcs.

Description - Set of floor brackets for NAVIN Calidum 3 tubular radiators, 2 pcs.

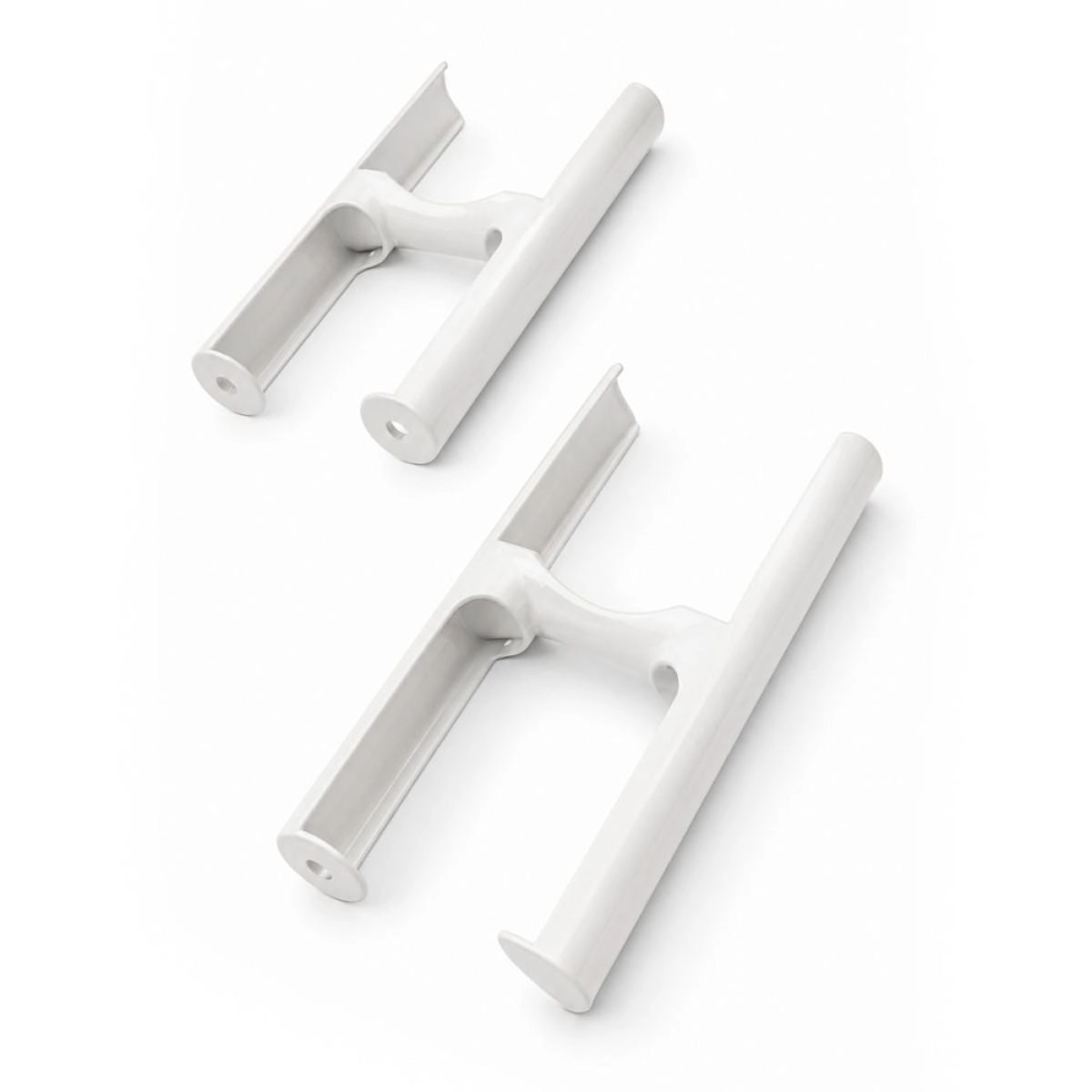

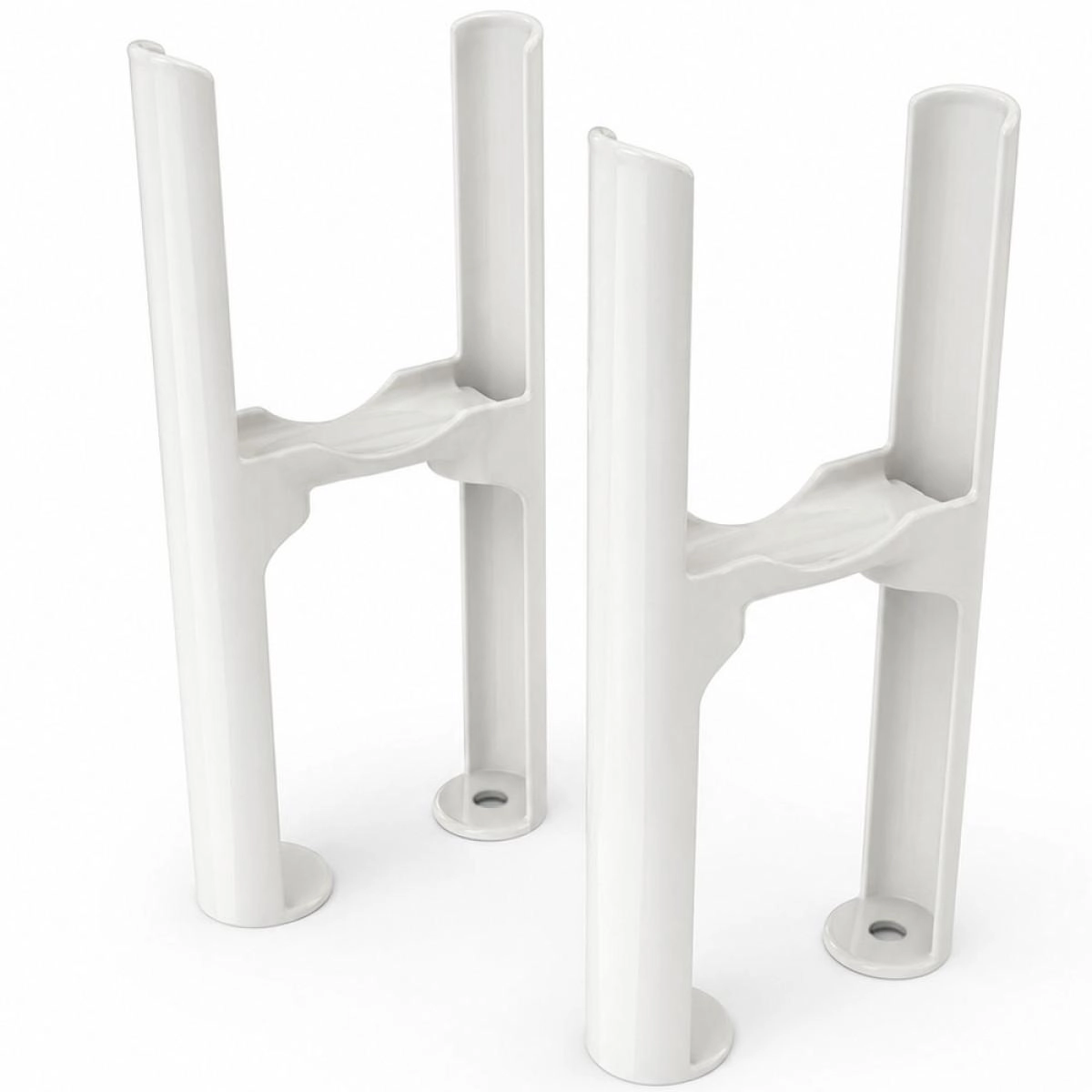

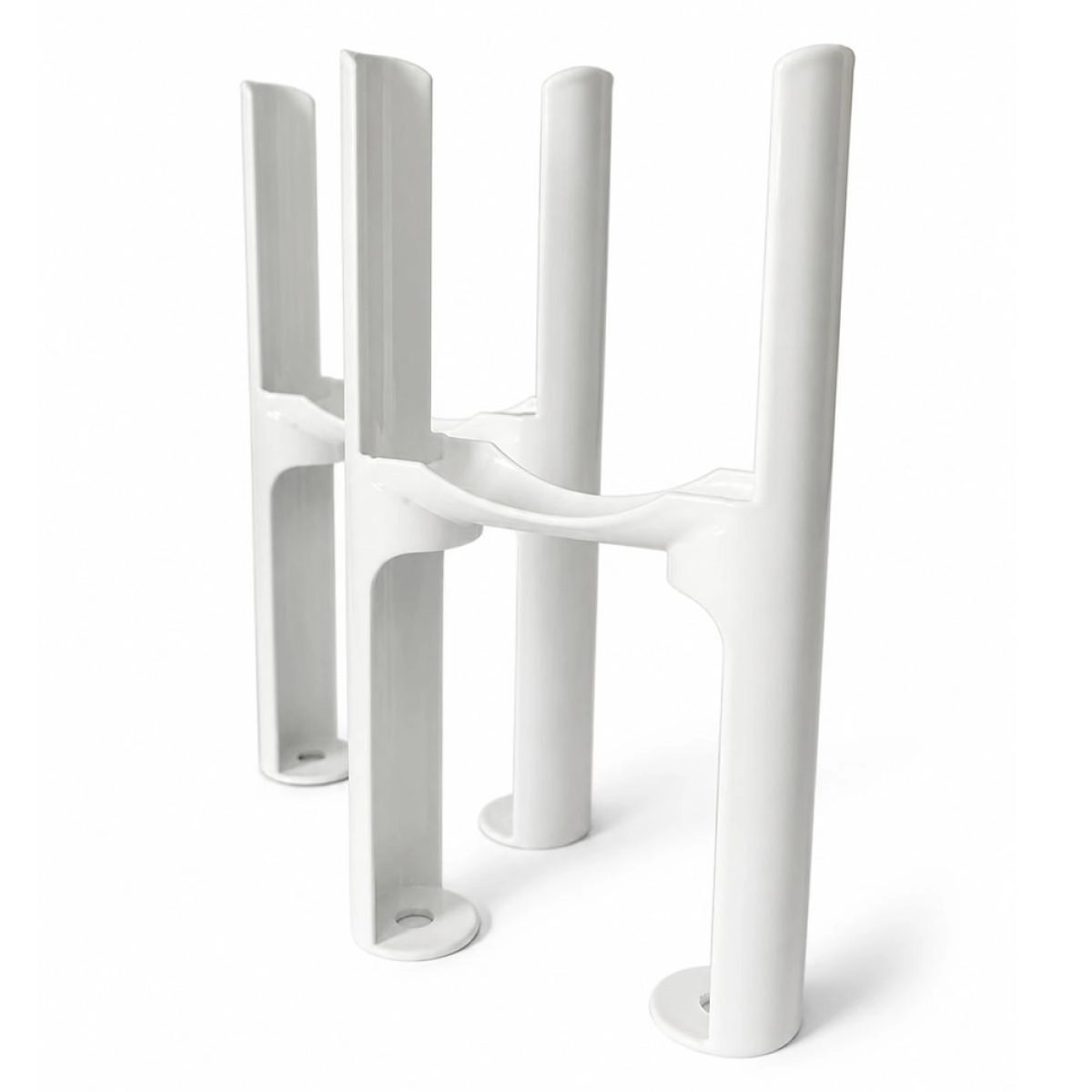

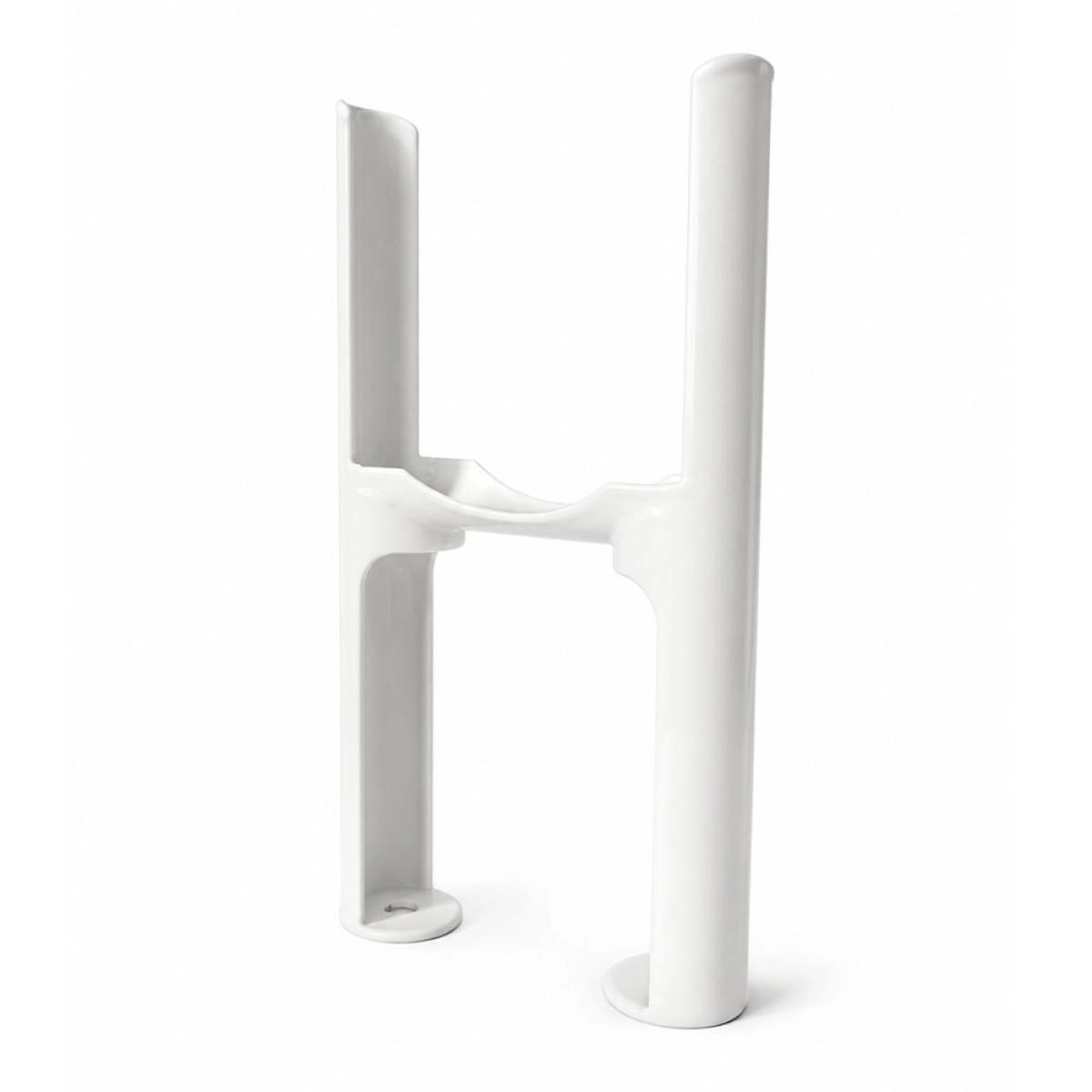

Floor brackets for NAVIN Calidum 3 radiators

The NAVIN Calidum 3 floor bracket set is designed for installing a tubular radiator directly on the floor. The supports exactly match the design of the Calidum 3 series radiators, ensuring correct placement of the product and a neat finished look.

Floor mounting helps to evenly transfer the load to the base and create a stable support for the radiator. This is a practical solution for rooms with panoramic windows, light partitions, non-standard layouts or for design projects in which the radiator is installed at a certain distance from the wall.

Main advantages

• Exact compatibility with all models of NAVIN Calidum 3 tubular radiators;
• Reliable floor support for a stable radiator position;
• NAVIN proprietary design , designed taking into account the geometry of the radiator;
• Neat appearance without bulky universal mounts;
• White protective and decorative coating , combined with white radiators;
• Ready-made kit for installing two floor supports.

Compatibility

The brackets fit all NAVIN Calidum 3 models regardless of the height, length and number of radiator sections.

Please note: the kit is designed specifically for NAVIN Calidum 3 series radiators, but may be suitable for tubular radiators of other series or manufacturers, provided that the design is compatible and the mounting dimensions match. Before purchasing, we recommend that you check the dimensions of the brackets with the radiator design.

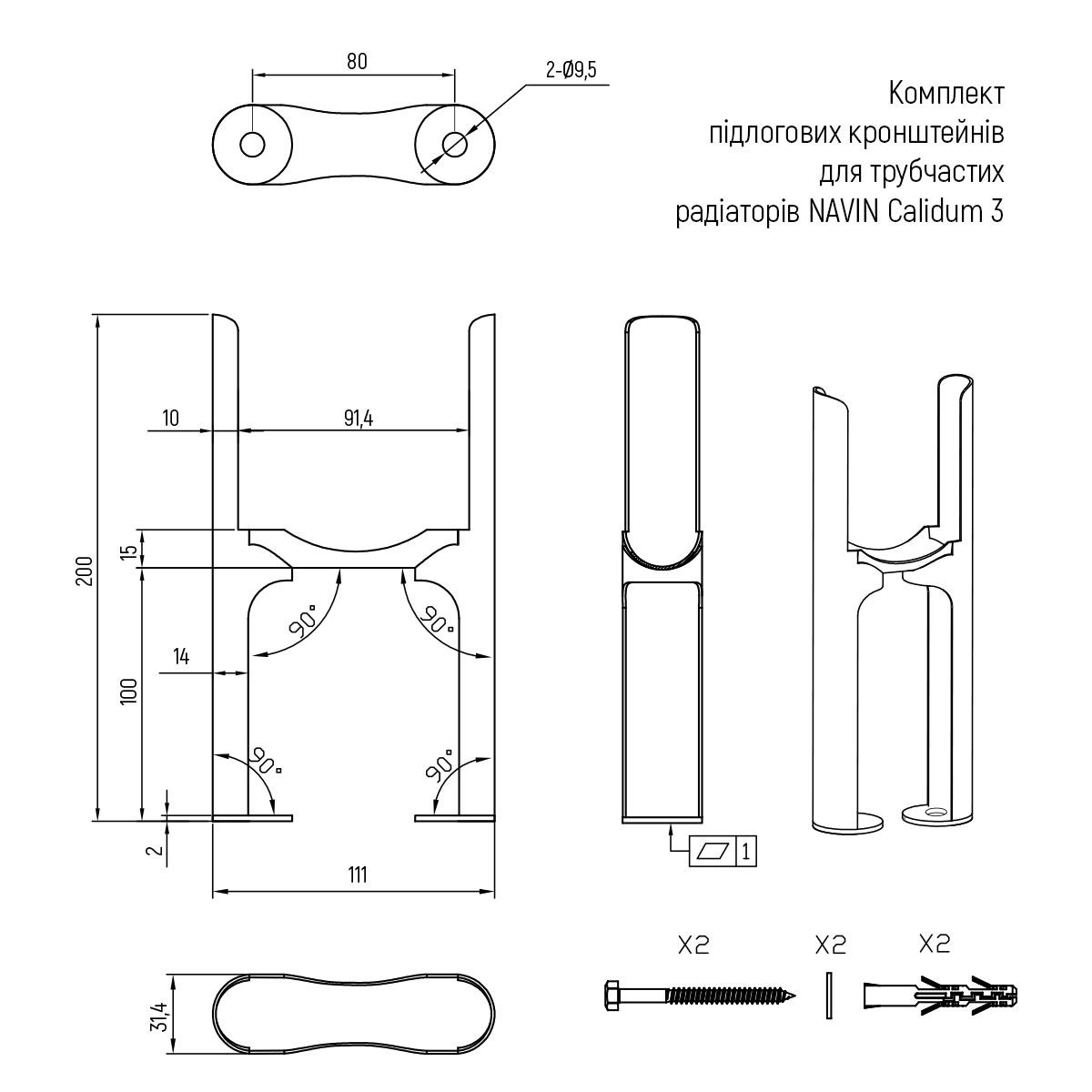

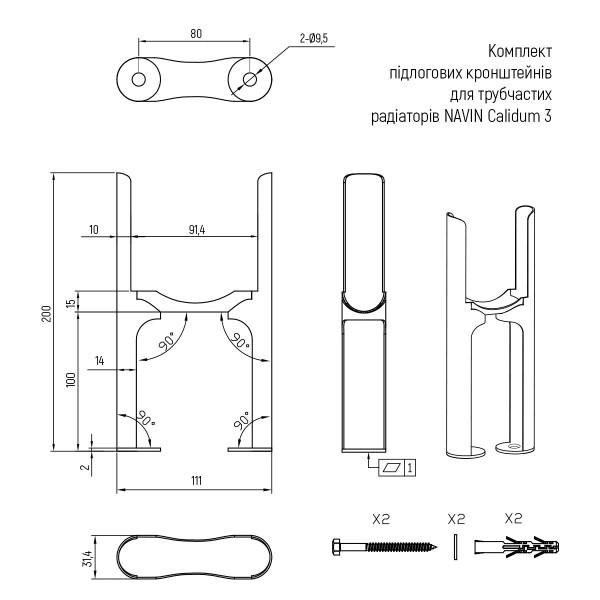

Main dimensions of the bracket

• height - 200 mm ;
• total width — 111 mm ;
• depth — 31.4 mm ;
• internal width of the support - 91.4 mm ;
• distance between the centers of the mounting holes - 80 mm ;
• mounting holes — 2 × Ø9.5 mm on each bracket;
• The thickness of the lower support part is 2 mm .

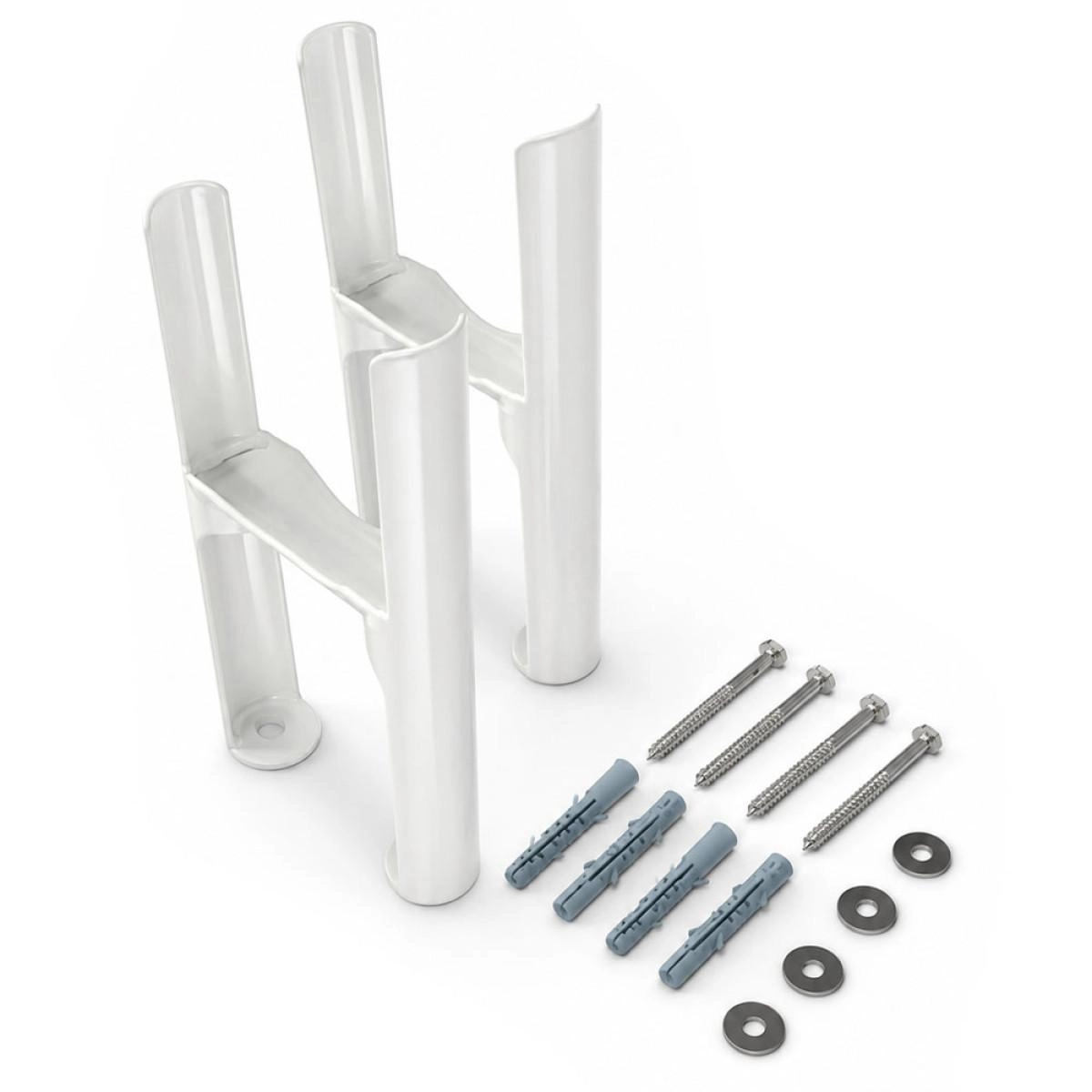

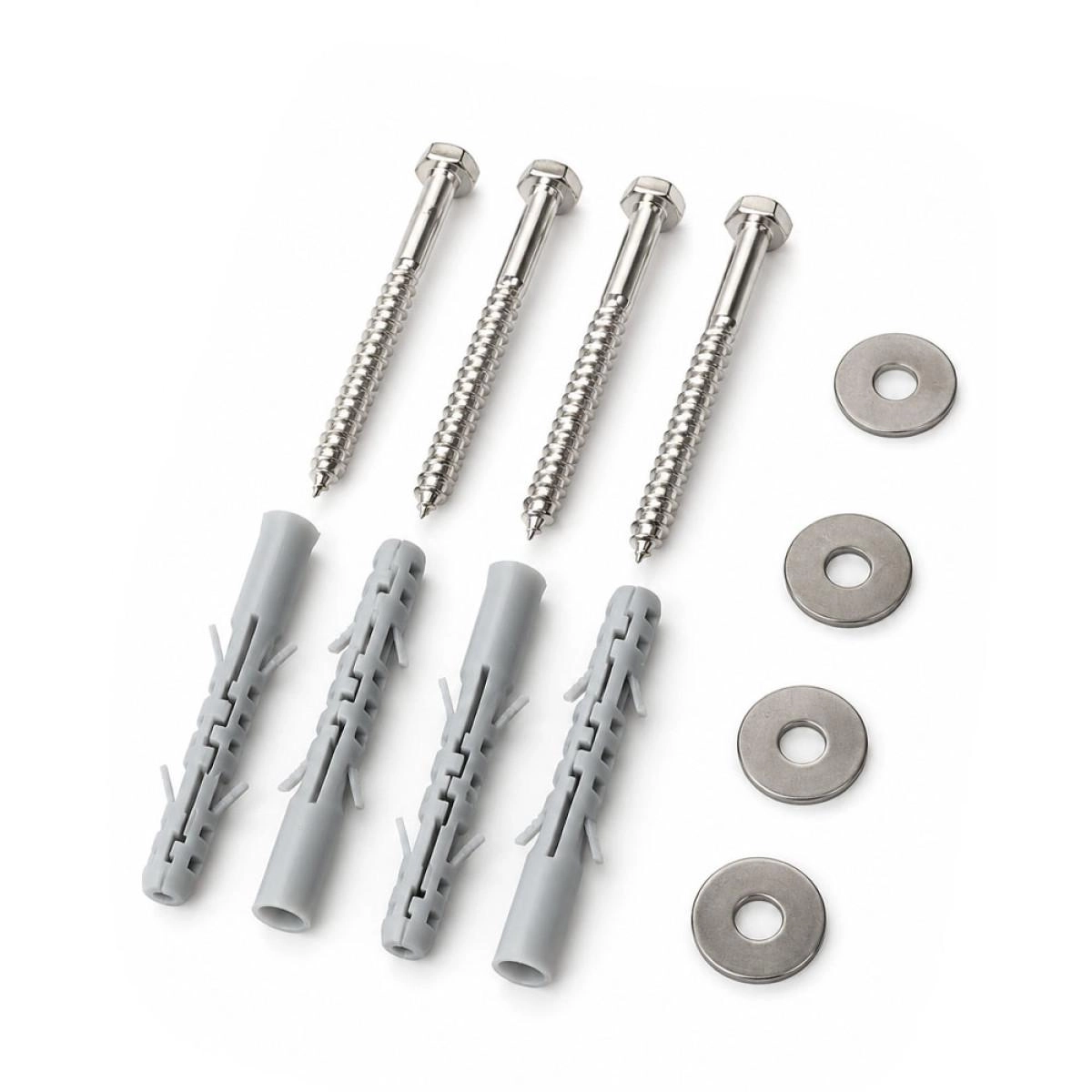

Equipment

• floor bracket — 2 pcs.;
• mounting screws — 4 pcs.;
• dowels — 4 pcs.;
• metal washers — 4 pcs.

Assembling

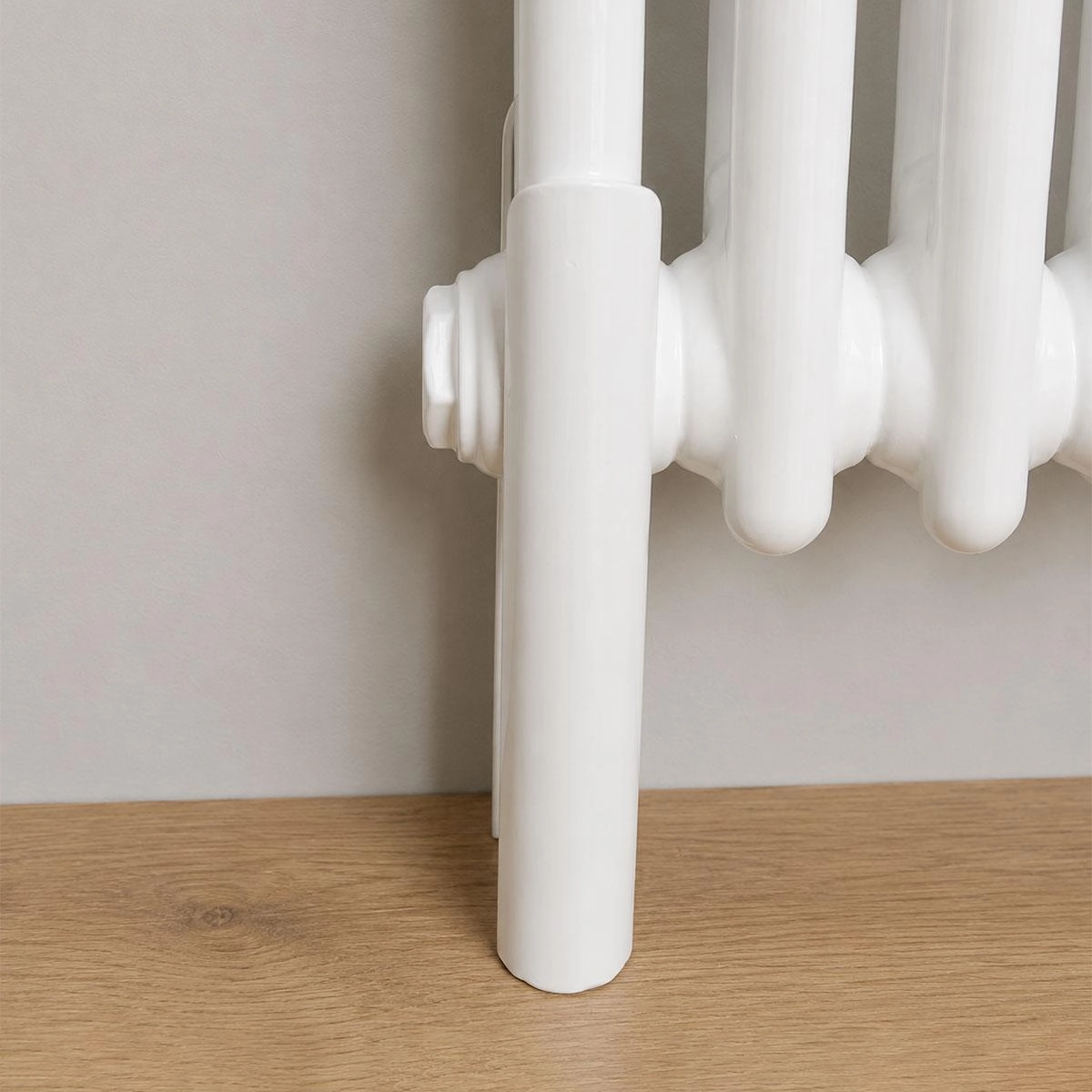

The brackets are installed on a solid, flat base and fixed through the mounting holes. The radiator is placed in special recesses in the supports. Installation must be carried out taking into account the weight and dimensions of the specific radiator model, the floor structure and the connection diagram.

The need for additional fixing of the radiator to the wall is determined by the installation conditions and installation documentation.

The NAVIN Calidum 3 floor bracket set is a reliable, aesthetic and structurally compatible solution for professional installation of a tubular radiator.
