Description - Angle Bottom Connection Valve Vario Term, 50 mm V-type (000M855A001)

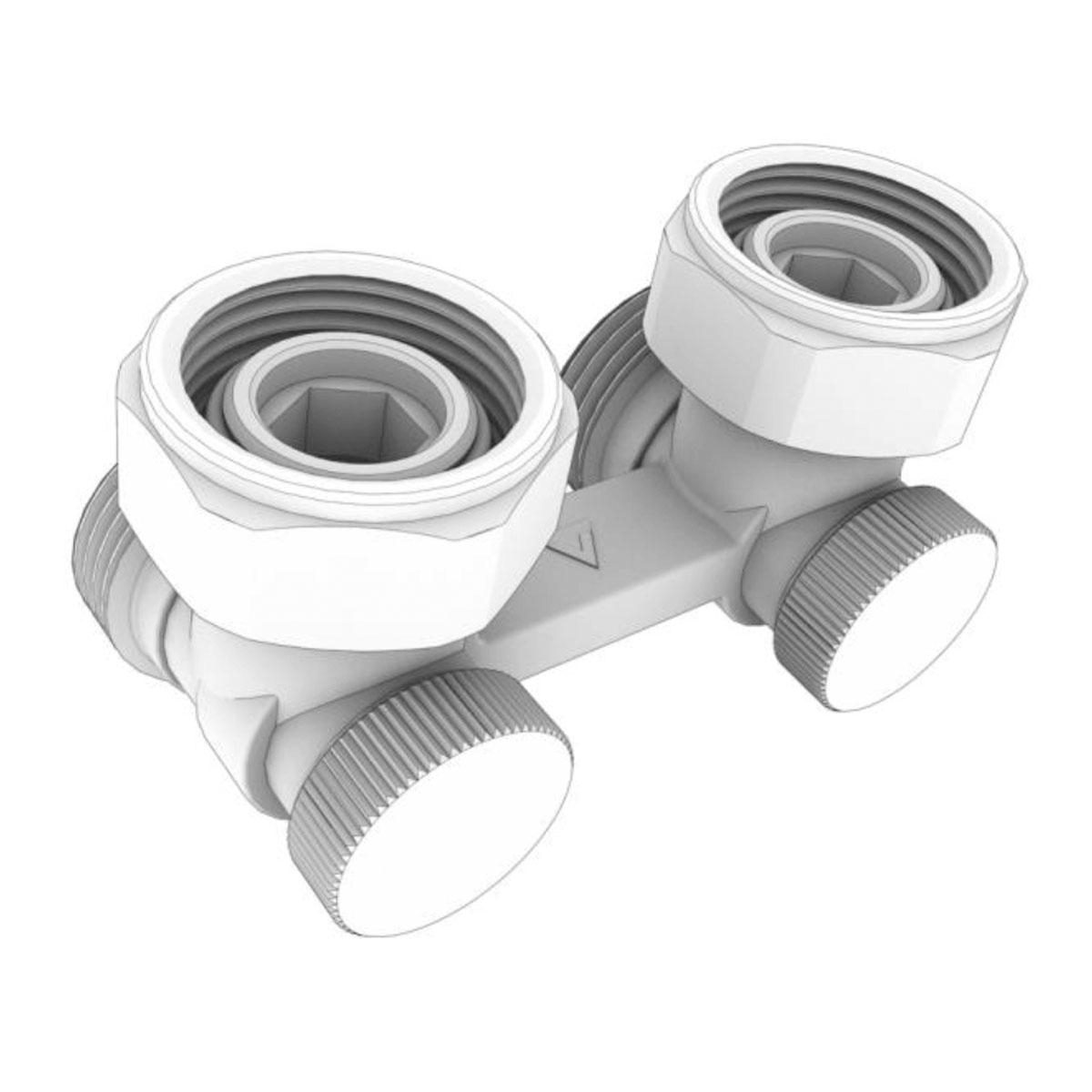

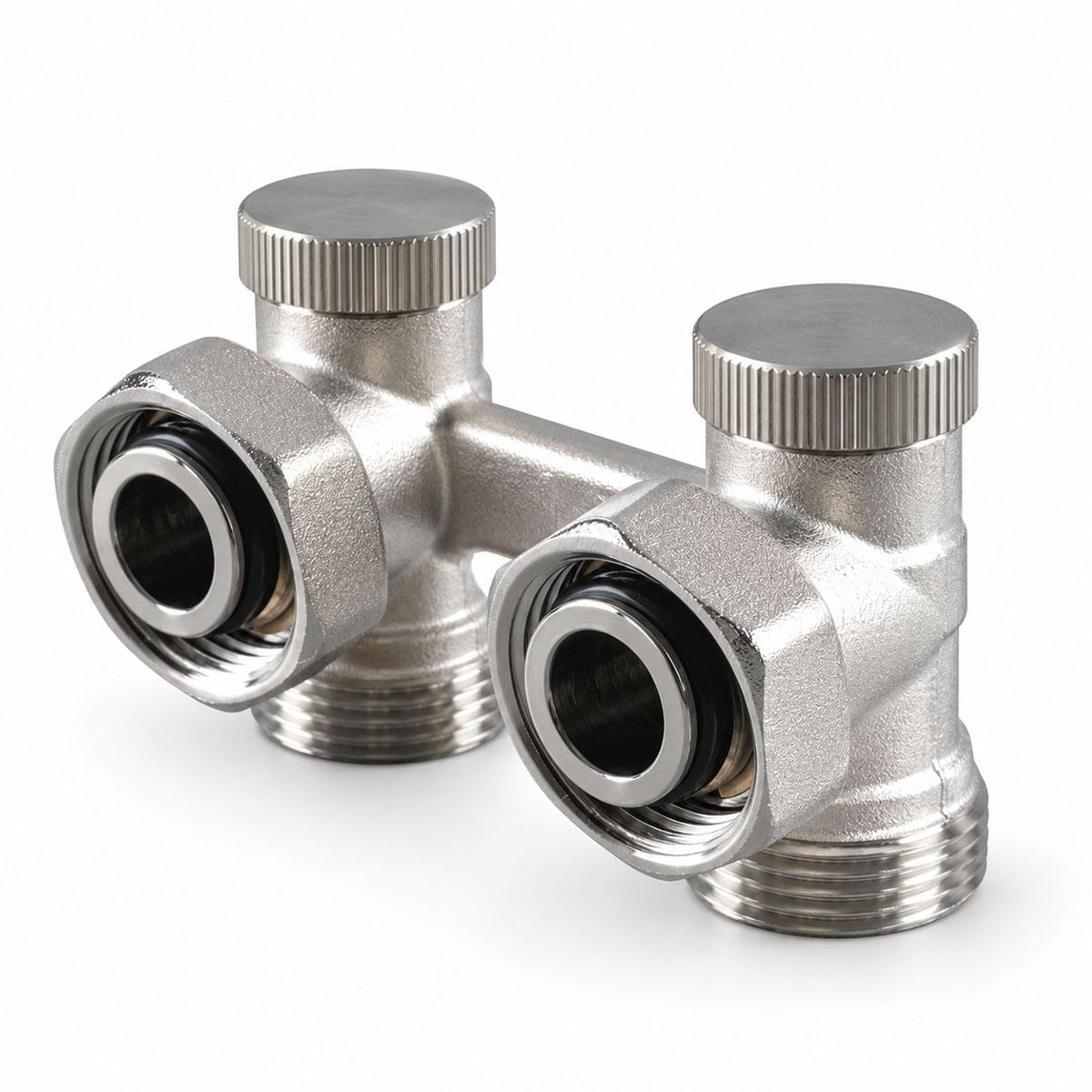

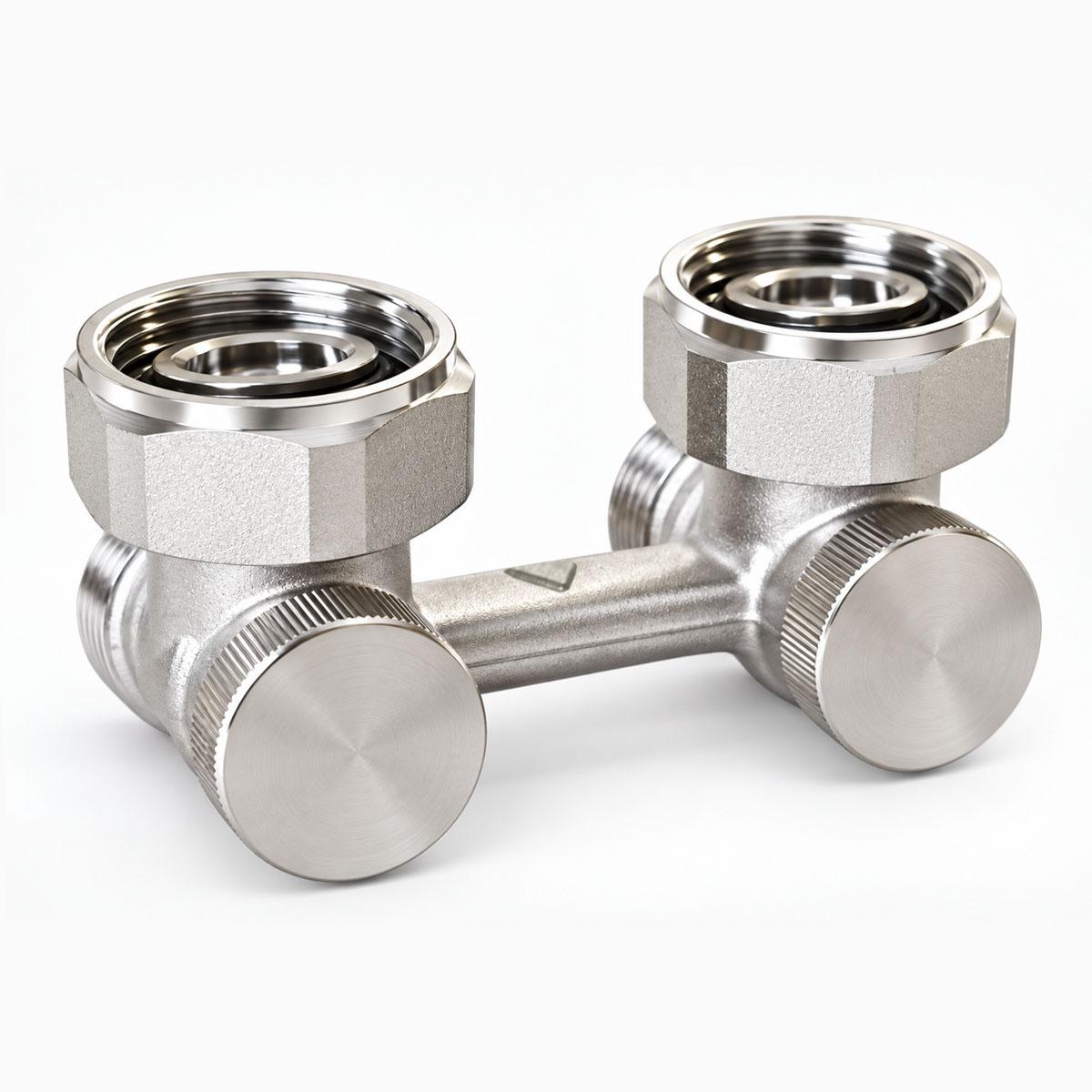

Vario Term V-Type Angled Two-Pipe Radiator Connection Valve

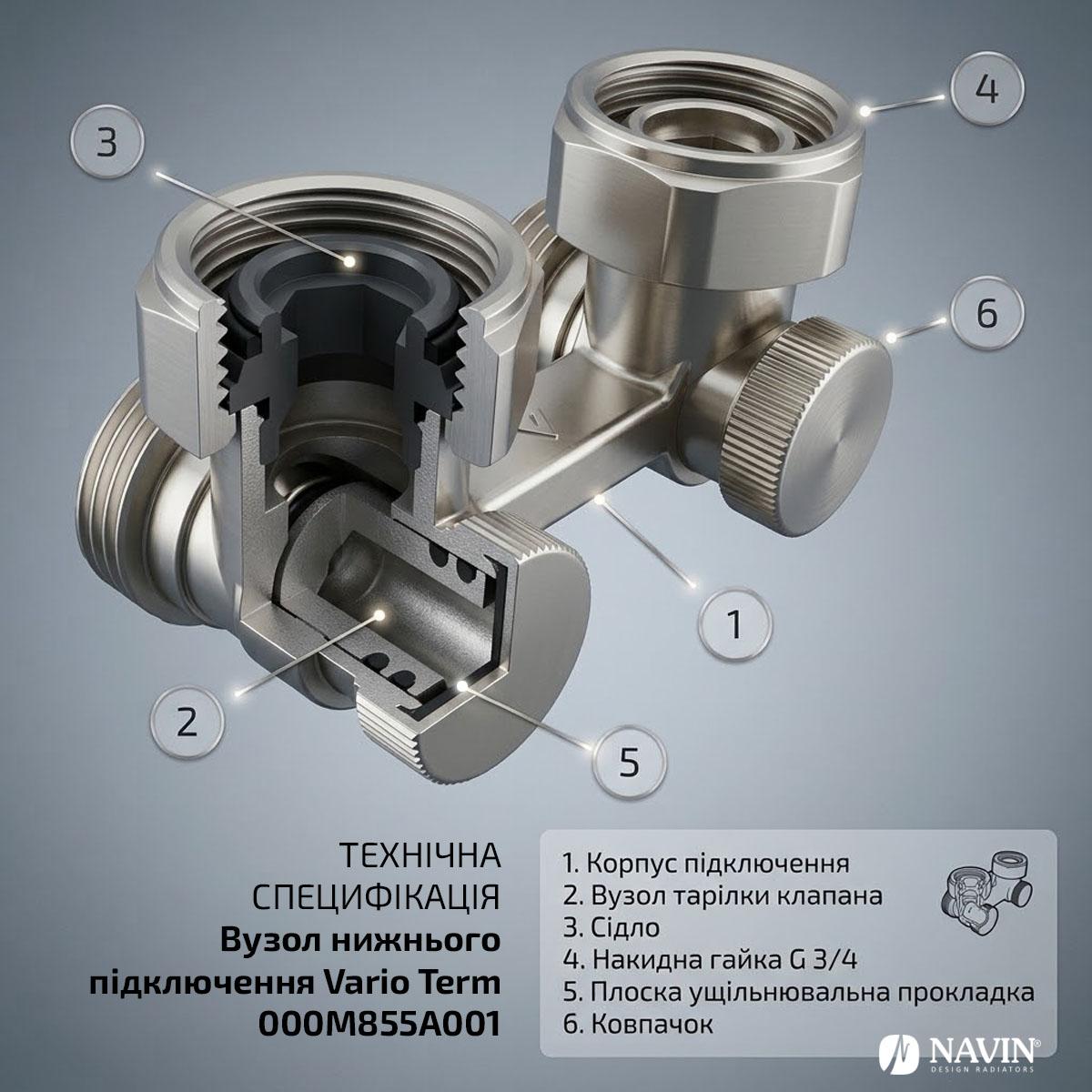

The two-pipe connection valve is designed for radiators with bottom connections in forced-circulation heating systems. It allows an individual radiator to be isolated for maintenance, repair or replacement without draining the entire heating system.

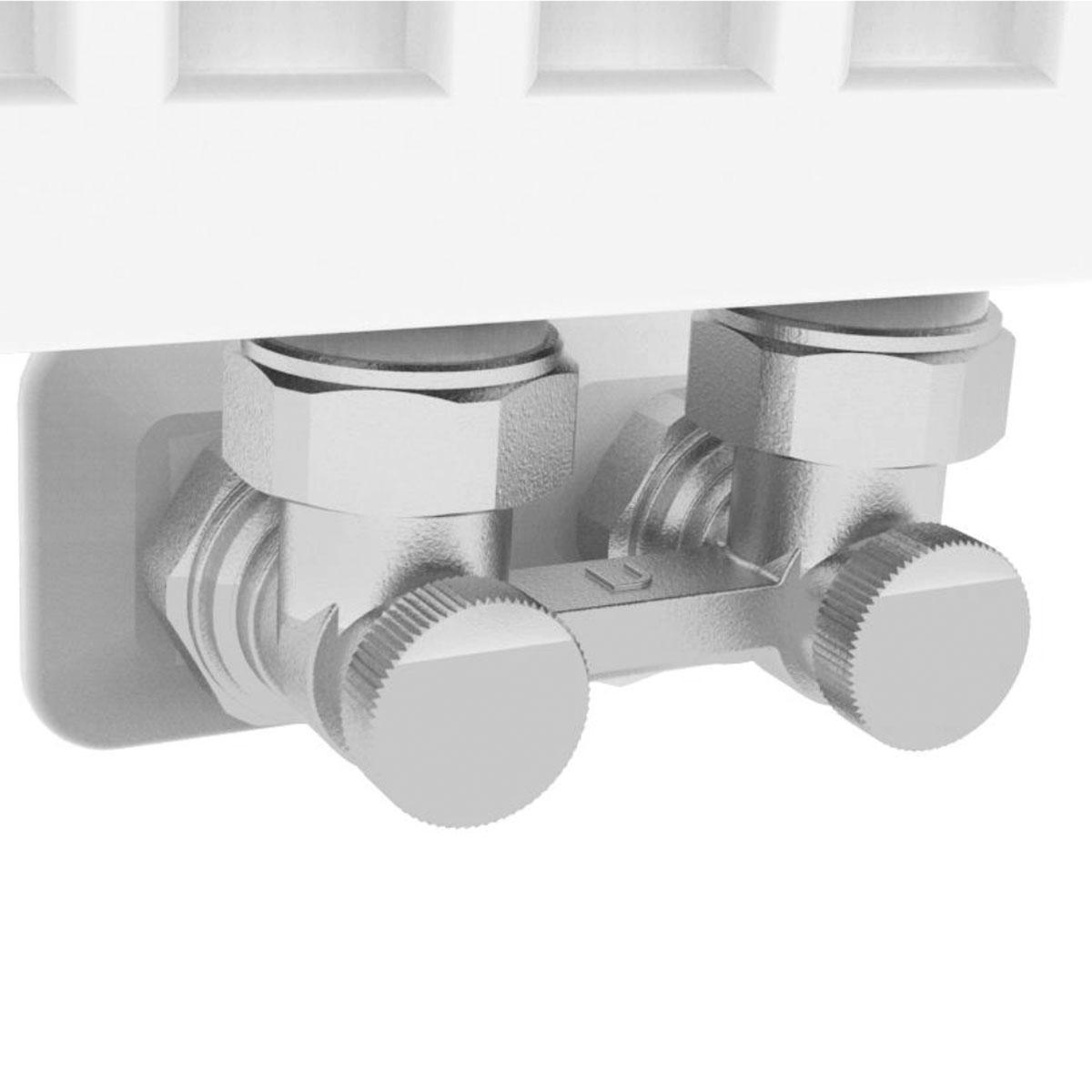

Vario Term Type V angled version (000M855A001), wall connection
Designed for routing heating pipes directly from the wall to the radiator. This installation method helps conceal the pipework and provides a clean, neat appearance.
Key Benefits
- Easy maintenance: complete flow shut-off allows the radiator to be removed or replaced without draining the entire system.
- Hydraulic balancing: precise adjustment of the heating medium flow rate using the Kv value.
- High reliability: robust body designed to operate under high pressure and temperature conditions.

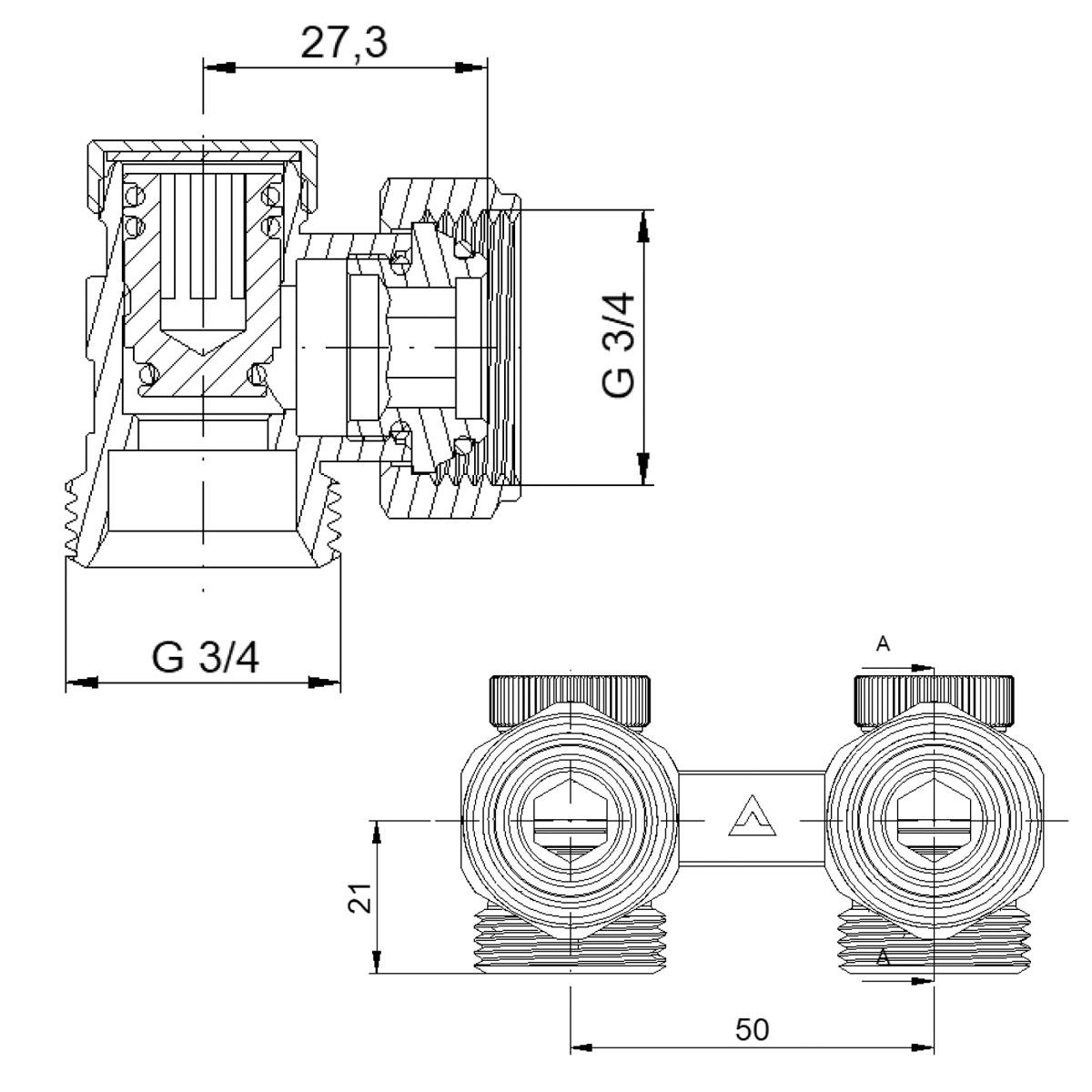

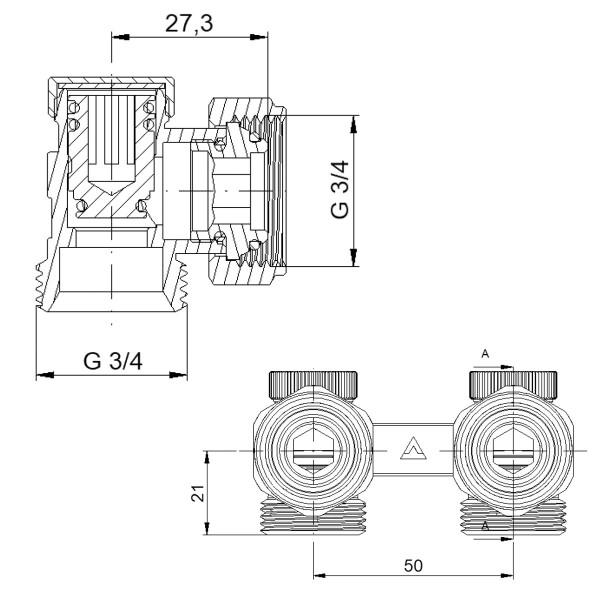

Technical Specifications
| Parameter | Value |
|---|---|
| Version | Angled, wall connection |
| Connection spacing | 50 mm |
| Thread connection | G ¾ (Eurocone) |
| Maximum operating temperature | 120 °C |
| Nominal pressure | 10 bar (1 MPa) |
| Maximum differential pressure | 0.6 bar (0.06 MPa) |
| Working medium | Water |
Installation and Adjustment
- Kv adjustment. The factory setting is fully open. To adjust the valve, close it fully, then turn it counterclockwise by the required number of turns according to the adjustment table.
- Maintenance. Before repairing or replacing the radiator, make sure the shut-off insert is fully closed.
- Leak protection. During extended repair work, it is recommended to install additional caps on any open connections.
Manufacturer's recommendation: for long-lasting operation of Vario Term fittings, the use of magnetic dirt filters together with V-Cleaner flushing agent and V-Inhibitor protective treatment is recommended.
Specification - Angle Bottom Connection Valve Vario Term, 50 mm V-type (000M855A001)
Product characteristics
Connection type
internal-external
Installation type
Corner
Model features
for heating radiators
Type
lower connection node
Material
brass
Color
nickel
Connection diameter
3/4
Working pressure, bar
10
Size
Dimensions (HxWxD), cm
8.6x5.5x6.6
Weight
Weight, kg
0.36
