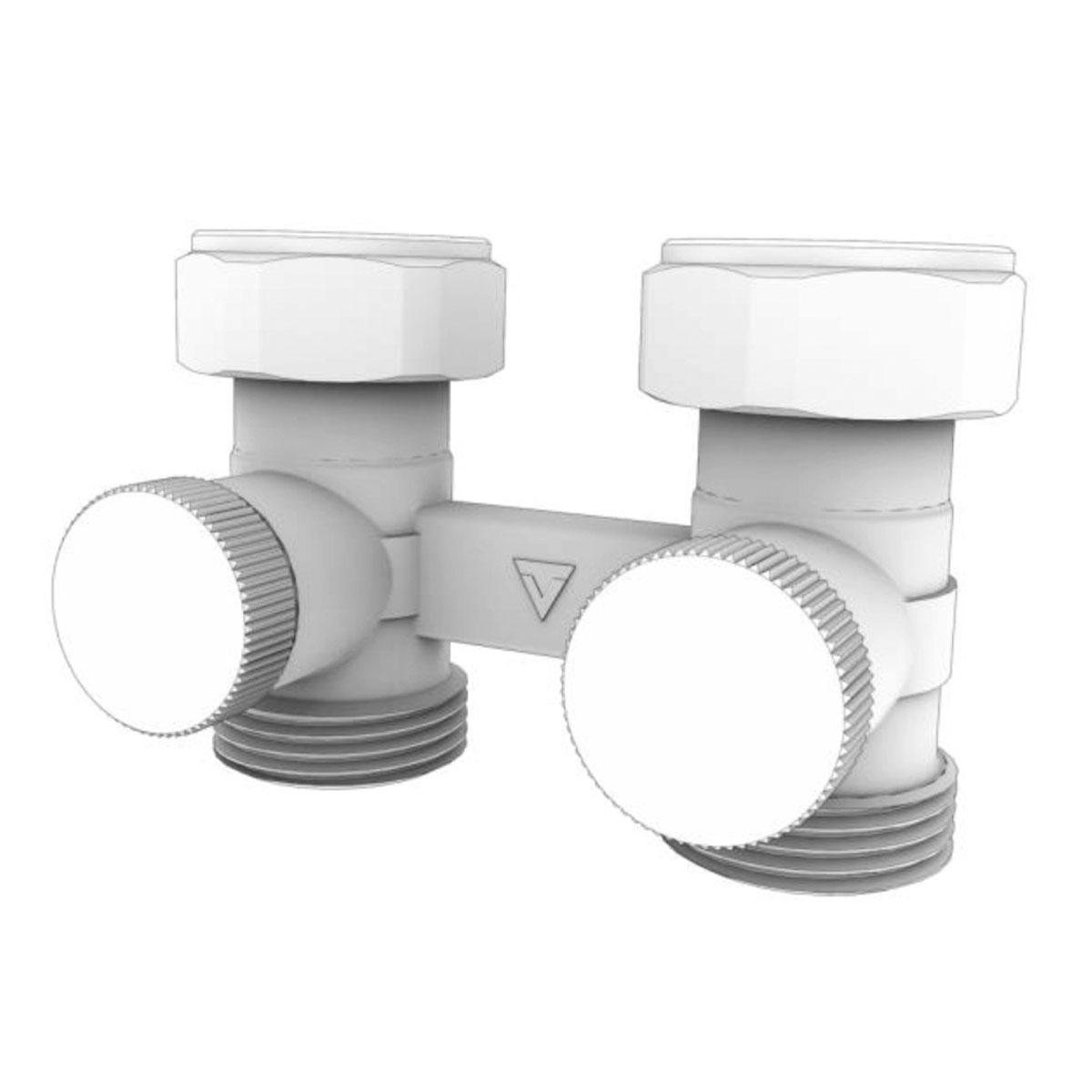

3D Model
Brand: VARIO TERM
Free shipping
We will deliver orders over UAH 2,000 free of charge via Nova Poshta to branches in Ukraine, subject to full prepayment (does not apply to promotional items)
Guarantee
Official NAVIN warranty for all products.
Up to 10 years — depending on the product category.
Exchange / return of goods — within 14 days.
Up to 10 years — depending on the product category.
Exchange / return of goods — within 14 days.
In stock
690 ₴
Description - Vario Term straight lower connection unit, 50 mm type V (000M856A001)

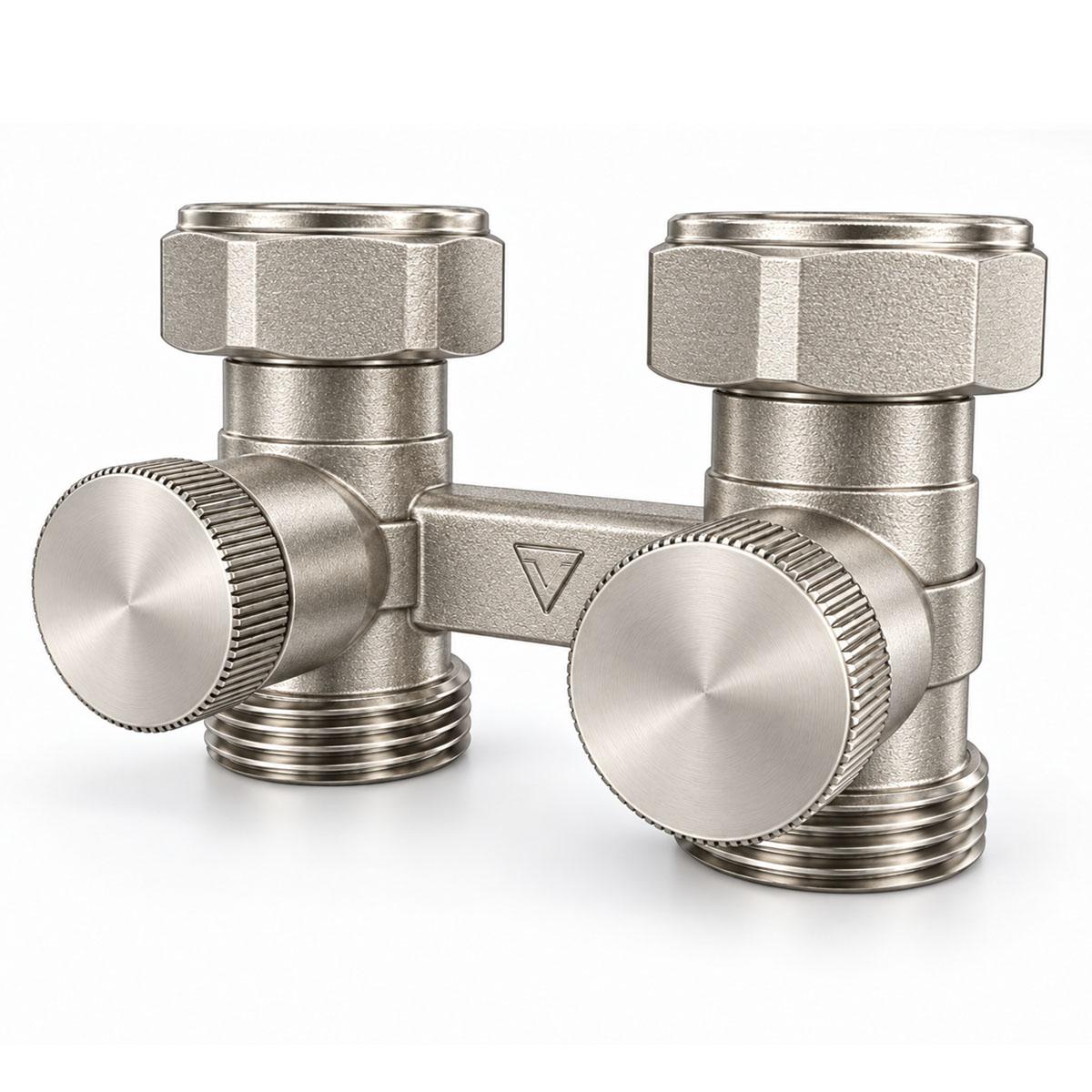

Vario Term Type V Straight Two-Pipe Radiator Connection Valve
The two-pipe connection valve is designed for radiators with bottom connections in forced-circulation heating systems. It allows an individual radiator to be isolated for maintenance, repair or replacement without draining the entire heating system.
Vario Term Type V straight version (000M856A001), floor connection
Designed for routing heating pipes directly from the floor to the radiator. This installation method provides a clean connection and is particularly suitable for heating systems with concealed pipework installed in the floor.
Key Benefits
- Easy maintenance: complete flow shut-off allows the radiator to be removed or replaced without draining the entire system.
- Hydraulic balancing: precise adjustment of the heating medium flow rate using the Kv value.
- High reliability: robust body designed to operate under high pressure and temperature conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Version | Straight, floor connection |

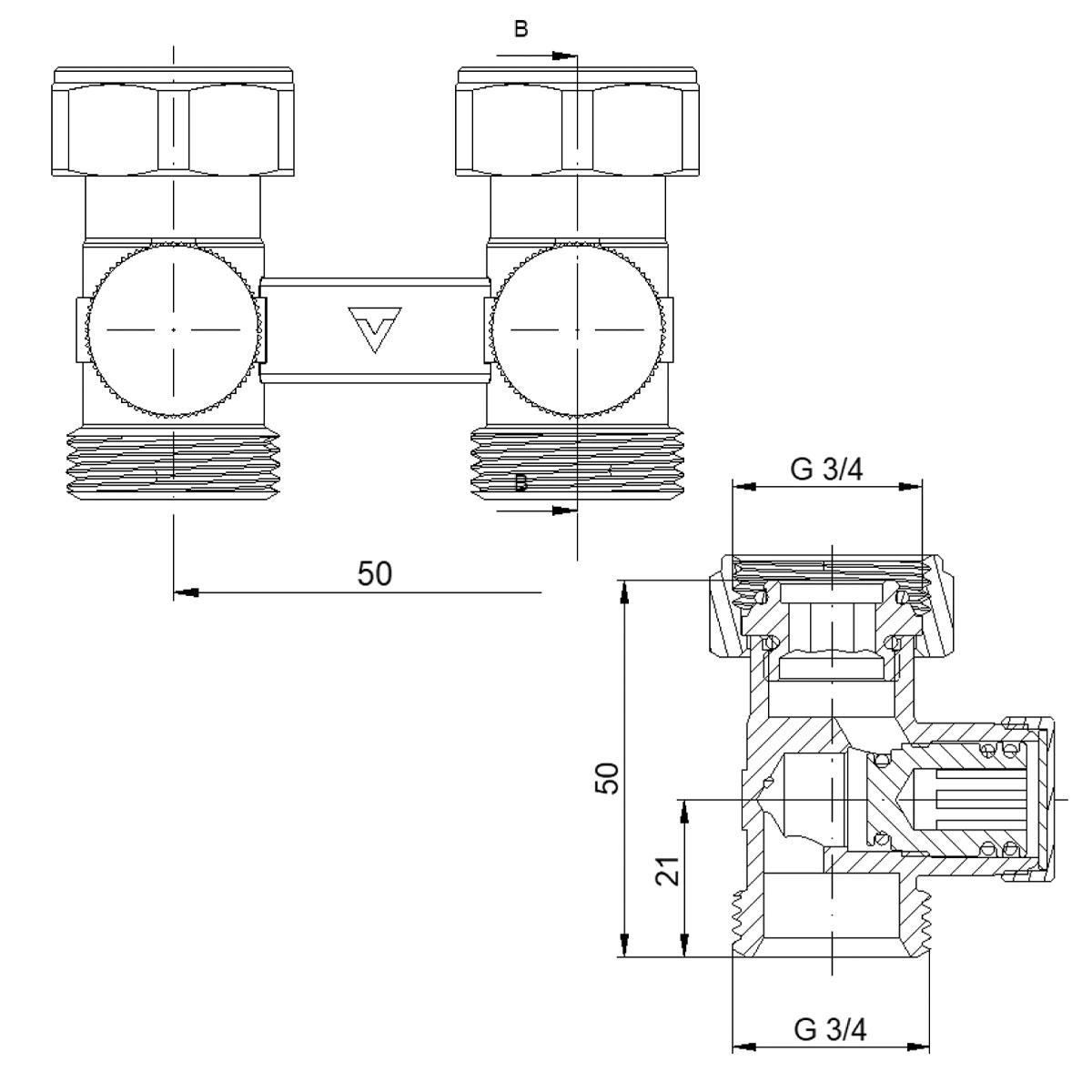

| Connection spacing | 50 mm |
| Thread connection | G ¾ (Eurocone) |
| Maximum operating temperature | 120 °C |
| Nominal pressure | 10 bar (1 MPa) |
| Maximum differential pressure | 0.6 bar (0.06 MPa) |
| Working medium | Water |
Installation and Adjustment
- Kv adjustment. The factory setting is fully open. To adjust the valve, close it fully, then turn it counterclockwise by the required number of turns according to the adjustment table.
- Maintenance. Before repairing or replacing the radiator, make sure the shut-off insert is fully closed.
- Leak protection. During extended repair work, it is recommended to install additional caps on any open connections.
Manufacturer's recommendation: for long-lasting operation of Vario Term fittings, the use of magnetic dirt filters together with V-Cleaner flushing agent and V-Inhibitor protective treatment is recommended.

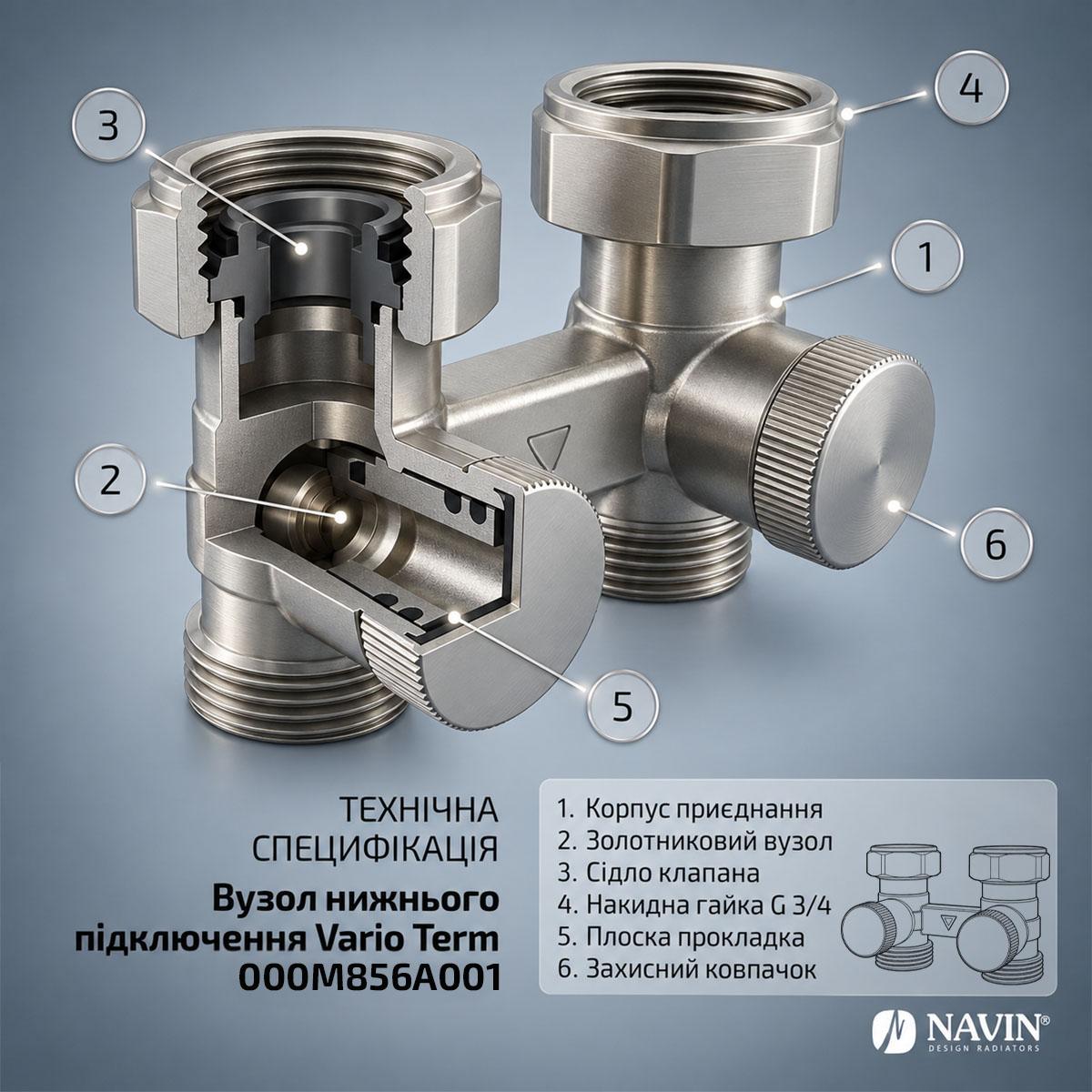

Specification - Vario Term straight lower connection unit, 50 mm type V (000M856A001)
Product characteristics
Connection type
internal-external
Installation type
Direct
Model features
for heating radiators
Type
lower connection node
Material
brass
Color
nickel
Connection diameter
3/4
Working pressure, bar
10
Size
Dimensions (HxWxD), cm
8.6x5.5x6.6
Weight
Weight, kg
0.36
